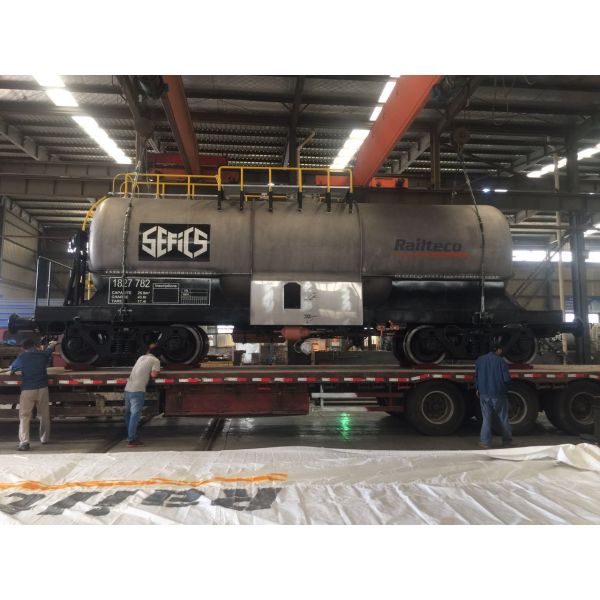

High Reliability Railway Tank Wagons , Train Tank Car 80km/h Maximum Operating Speed

Name: High Reliability Railway Tank Wagons Train Tank Car 80kmh Maximum Operating Speed
Brand: Railteco
Price: 1 USD

Brand Name : Railteco

Place of Origin : China

MOQ : One pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : According to customer's requirement

Delivery Time : 6 months

Packaging Details : Railteco Standard Packing

Name : Railway Tank Car

Payload : 43.6 T

Capacity : 27.5 m³

Maximum operating speed : 80 km/h

Feature : Reliable

Track gauge : As per client

Contact Now

Railway Tank Wagons Phosphoric Acid Tank Wagon Railroad High-capacity Tank Car Mineral Oil Rail Tank Car

Parameters of Phosphoric Acid Tank Wagon:

Tare weight ≤17.4t

Payload 43.6t

Capacity 27.5m³

Axle load(bogie) 18t

Track gauge As per client

Maximum operating speed 80km/h

Length over coupler 10530mm

Rmin(single wagon) 70m

Break type UIC

Coupler type Screw coupler

Bogie type Cast type

Hydro test pressure 0.459MPa

Safety valve working pressure 0.15MPa

Type of load Top

Type of unload Bottom(both sides)

Description of Phosphoric Acid Tank Wagon:

Phosphoric acid tank Wagon is specially designed and manufactured to transport phosphoric acid. Loading hatches is covered with manhole cover, unloading hatches is equipped with one 5 inches internal valve, T branch pipe and two ball vales. The wagon is loaded from the top after the top cover is opened. Top cover is manually operated from wagon top platform. The wagon is unloaded from the bottom hatches. Internal valve and ball vale manually operated from both wagon sides, each ball vale separately. The goods are unloaded from two sides of wagon. The tank and tank fittings adopt 316L stainless steel. The wagon design meets the requirements of EN, UIC standard.
