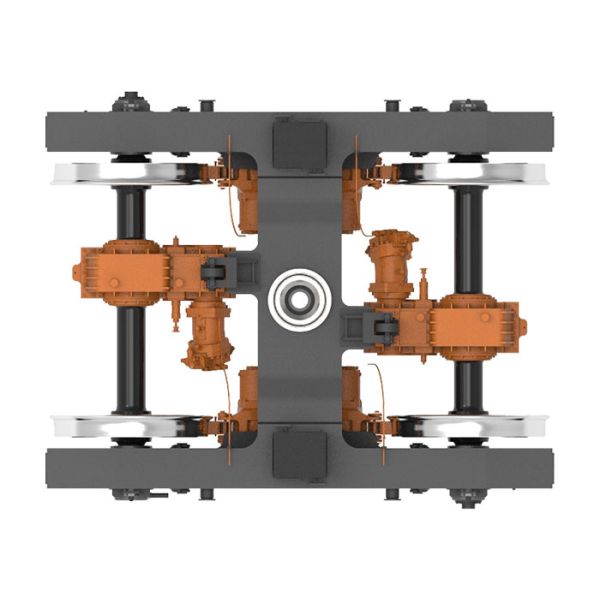

RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle

  • 1
  • 2
  • 3

Brand Name : Railteco

Model Number : RTHZ36

Certification : AAR ISO

Place of Origin : China

MOQ : One pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : According to customer's requirement

Delivery Time : 4 months after advance payment

Packaging Details : Railteco Standard Packing

Name : Rail Engineering Vehicle Bogie RTHZ36

Axle load : 35t

Tare weight : 7.8t

Running speed（Max） : 35km/h

Diameter of wheels : Ø650mm

Fixed Wheelbase : 1300mm

Min curve radius : 100m

Gauge : 1435mm

Contact Now

Type RTHZ36 Railcar Bogie For Rail engineering vehicle



Description of Rail Engineering Vehicle Bogie RTHZ36:

This kind of bogie is mainly used for low-speed and heavy-load wagon. It is mainly composed of frame, wheelset, axle box and guide frame

The bogie mainly adopts a welded frame type structure. The frame consists of two sets of side beams, two sets of cross beams and one set of middle beam. Two rigid side bearings are arranged on both sides of the frame. The wheels are made of integral silicon steel wheels; selfaligning roller bearings are used, and the springs adopt three-stage spring stiffness. The parts where connecting the bogie and the vehicle are made of non-metallic materials such as nylon and rubber.
The bogie is simple in structure, reliable in strength, and convenient in operation and maintenance.

Main Technical Data of Rail Engineering Vehicle Bogie RTHZ36:

Gauge 1435mm
Axle Load 35t
Tare Weight 7.8t
Fixed Wheelbase 1300mm
Max. Running Speed 35km/h
Diameter of wheel Ø650mm



RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle





RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle



RTHZ36 Railcar Bogie 35km/H For Rail Engineering Vehicle
